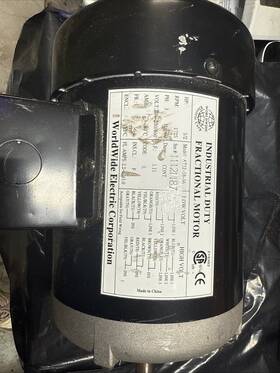

WORLDWIDE ELECTRIC AT12-18-56 Motor Frame Rpm Mod 1/2 1725 208/230-460 V.

At12-18-56 Worldwide Electric 1/2 Hp 3 Ph Motor 56 Frame 1725 Rpm 208/230-460 V. Mod

( Brand: Worldwide Electric ), ( Manufacturer Part Number: AT12-18-56 ), ( Part Type: Hp Motor Frame ), ( Actual Rated Input Voltage: 208/230-460 ), ( Inverter/vector Duty Rating: Not Inverter/vector Duty Rated ), ( Special Motor Construction: General Purpose ), ( Base Rpm: 1725 ), ( Insulation Class: F ), ( Current Type: Ac ), ( Service Factor: 1.15 ), ( Full Load Amps: 2.2/2.0-1.0 ), ( Nema Design Letter: Design B ), ( Rated Load: Hp ), ( Ac Frequency Rating: 60 Hz ), ( Enclosure Type: Tefc ), ( Shaft Type: Keyed ), ( Ac Motor Type: Induction/asynchronous ), ( Shaft Diameter: 5/8 In ), ( Mounting Type: Base-mounted, Face-mounted ), ( Reversible/non-reversible: Reversible ), ( Ip Rating: Not Rated ), ( Nominal Rated Input Voltage: 208 V, 230 V, 460 V ), ( Country/region Of Manufacture: China ), ( Ac Phase: Three Phase )

Review WORLDWIDE ELECTRIC 1/2 Hp Ph Motor 56 Frame Rpm 208/230-460 V. Mod

High-Performance 1/2 HP, 12-18 Frame Electric Motor (Model: AT12-18-56)

Experience unparalleled power and efficiency with the AT12-18-56 electric motor, a high-performance addition to your power tool or machinery arsenal. This 1/2 HP motor is designed with a 12-18 frame, making it a versatile choice for a wide range of applications.

The AT12-18-56 motor operates at a nominal speed of 1725 revolutions per minute (RPM), ensuring smooth and consistent operation. It is suitable for 208/230-460 voltage systems, offering the flexibility to operate in various electrical environments.

This motor features a robust construction, with a 56 frame design that ensures durability and long-lasting performance. The motor is built to withstand the demands of heavy-duty applications, while maintaining a compact size for easy integration into your equipment.

The AT12-18-56 motor is an ideal choice for those seeking a reliable, high-performance motor for their power tools, pumps, fans, or other electrical equipment. Its combination of power, efficiency, and versatility makes it a valuable asset in both residential and commercial settings.

Upgrade your equipment with the AT12-18-56 electric motor, and experience the difference that a high-quality, high-performance motor can make in your daily operations.

Analysis of Buying an Electric Motor (12-18-56 1/2 hp, 56 frame, 1725 rpm, 208/230-460 V)

Pros:

1. **Versatility**: This motor is available in a wide voltage range (208/230V and 460V), making it suitable for various industrial applications.

2. **Reliability**: The 56 frame size is commonly used in industrial applications, indicating a proven track record of durability and longevity.

3. **Standard Speed**: The motor operates at a standard speed of 1725 RPM, which is compatible with many industrial equipment.

4. **Power**: With a 1/2 horsepower rating, it offers a decent balance between power and efficiency for its size.

Cons:

1. **Limited Power**: For heavy-duty applications, a 1/2 horsepower motor may not provide enough power.

2. **Efficiency**: While the motor is efficient for its size, larger motors may offer better energy efficiency per unit of power.

3. **Potential Noise**: Electric motors can produce noise, and the exact level of noise produced by this motor may not be specified, which could be a concern in sensitive environments.

Conclusion:

The electric motor (12-18-56 1/2 hp, 56 frame, 1725 rpm, 208/230-460 V) is a versatile and reliable choice for many industrial applications due to its wide voltage range, standard speed, and durable frame size. However, it may not be suitable for heavy-duty applications or those requiring higher power efficiency. If power efficiency is a priority or the application is particularly heavy-duty, it might be worth considering a larger motor. Otherwise, this motor could be a good fit for various industrial needs.

Recommendation:

Considering the versatility and reliability of this motor, it could be a good choice for general industrial applications. However, it's essential to carefully evaluate the specific power requirements and operational environment of your application before making a final decision. It's also advisable to consult with a professional if you have doubts about the suitability of this motor for your specific needs.

Details:

This induction/asynchronous motor with a NEMA frame suffix of 56 is manufactured by WorldWide Electric and suitable for various industrial commercial use cases. This motor is rated for 208/230-460 volts and has a NEMA Design Letter of B. It features a TEFC Totally Enclosed Fan Cooled enclosure, keyed shaft, and is reversible.

part #: at121856 prices

  • $114.95-$189.95

specifications oelemot:

  • brand: Worldwide Electric
  • mpn: At12-18-56
  • part type: Hp Motor Frame
  • actual rated input voltage: 208/230-460
  • inverter/vector duty rating: Not Inverter/vector Duty Rated
  • special motor construction: General Purpose
  • base rpm: 1725
  • insulation class: F
  • current type: Ac
  • service factor: 1.15
  • full load amps: 2.2/2.0-1.0
  • nema design letter: Design B
  • rated load: Hp
  • ac frequency rating: 60 Hz
  • enclosure type: Tefc
  • shaft type: Keyed
  • ac motor type: Induction/asynchronous
  • shaft diameter: 5/8 In
  • mounting type: Base-mounted, Face-mounted
  • reversible/non-reversible: Reversible
  • ip rating: Not Rated
  • nominal rated input voltage: 208 V, 230 V, 460 V
  • country/region of manufacture: China
  • ac phase: Three Phase

shipping oelemot:

  • carrier: USPS
  • transit: 4-10 Days
  • cost: $71.73
  • class: Standard
  • type: Calculated
  • service: USPS Ground Advantage

offer oelemot:

  • options: Ship-to-home
  • best offers: True
  • sold: 0
  • quantity: 2
  • started: July 6, 2025
  • availability: In Stock

payments oelemot:

  • wallet: Paypal
  • credit card: Discover
  • other

general oelemot:

  • condition: Used
  • Industrial Automation Motion Controls > Electric Motors > General Purpose Motors

seller oelemot:

  • # reviews: 1
  • city: Willow Spring, North Carolina
  • rating: 100.0%

returns oelemot:

  • policy: No Returns
part type: hp motor frame, actual rated input voltage: 208/230-460, inverter/vector duty rating: not inverter/vector duty rated, special motor construction: general purpose, base rpm: 1725, insulation class: f, current type: ac, service factor: 1.15, full load amps: 2.2/2.0-1.0, nema design letter: design b, rated load: hp, ac frequency rating: 60 hz, enclosure type: tefc, shaft type: keyed, ac motor type: induction/asynchronous, shaft diameter: 5/8 in, mounting type: base-mounted, face-mounted, reversible/non-reversible: reversible, ip rating: not rated, nominal rated input voltage: 208 v, 230 v, 460 v, country/region of manufacture: china, ac phase: three phase,
